Large Single Beam Gantry Crane 10 Ton Electric Hoist Q235 Q345 Steels 18~36m Span

Henan Feima Crane Co., Ltd.

Large Single Beam Gantry Crane 10 Ton Electric Hoist Q235 Q345 Steels 18~36m Span

Brand Name : Major

Model Number : MG

Certification : CE/ISO/GOST/SGS/BV/TUV

Place of Origin : Henan, China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 20000 Sets Per Year

Delivery Time : 15days - 100days

Packaging Details : Single girder gantry crane; Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth

Material : Steels Q235, Q345, etc.

Color : Yello, Blue, etc. By Buyer's Option

Driving : Electric Motors

Power : Electricity

Rated Loading Capacity : 5~32t

Control Method : Cabin, Pendant Control And Remote Control

Product Name : Single Beam Gantry Crane

Lifting Height : 20~30m

Contact Now

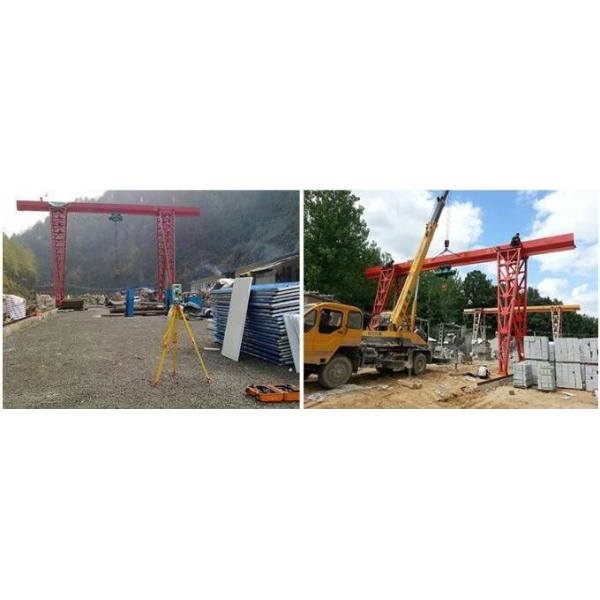

10 Ton Electric Hoist Large Single Beam Gantry Crane A Frame Gantry Crane


Applied outside to do common loading and unloading with strong winch.

Single beam gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works, this kind of crane is composed of bridge, support legs, crane traveling organ, electric equipment, strong lifting winch, the frame adopts trussed-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire, there are different capacity single beam gantry crane for your choice according to your different use.

Safety feature:
-- Weight overload protection
-- Top quality polyurethane materials buffer
-- lifting, cross travel & long travel limit switch
-- Voltage lower protection function
-- Emergency stop system
-- Current overload protection system
MH single beam electric hoist gantry crane is equipped with electric hoists and widely used in indoor wishouse, outdoor store yard.

Main Features

1. the design and manufacturing of the single beam electric hoist gantry crane is in accordance with the Chinese standard.
2. The work duty of the single beam electric hoist gantry crane is M~M5
3. the operation way can be choice: cabin control, remote control or pendant on the ground.
4. the main beam of the single beam electric hoist gantry crane is box-shape
5. the span and lift height of the single beam electric hoist gantry crane should be
designed by the users' requirements
Control method:
Cabin or remote control or both
Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer,
Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current
overload protection system and so on!
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
painting:
Primer and finishing paint
Color: According to your demand.
average thickness: About 100 microns.

Large Single Beam Gantry Crane 10 Ton Electric Hoist Q235 Q345 Steels 18~36m SpanLarge Single Beam Gantry Crane 10 Ton Electric Hoist Q235 Q345 Steels 18~36m Span

Lifting Capacity T 3 5 10 16 20
Operational method Pendent line with push button /cabin
Speed Lifting 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
m/min
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 30,40 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2 YZR132M1-6/2.2×2 YZR160M1-6/6.3×2 YZR160M1-6/6.3×2 YZR160M1-6/6.3×2
ZDY21-4/1.5×2 YZR132M2-6/3.7×2 YZR160M2-6/8.5×2 YZR160M2-6/8.5×2
Cabin ZDR22-4/1.5×2 YZR132M2-6/3.7×2 YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 YZR160M2-6/8.5×2
ZDR24-4/2.2×2 YZR160M1-6/5.5×2 YZR160L2-6/11×2 YZR160L2-6/11×2
Electric hoist Type CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty A5
Power supply 380V 50HZ 3phase AC
Span m 12,16,20,24,30
